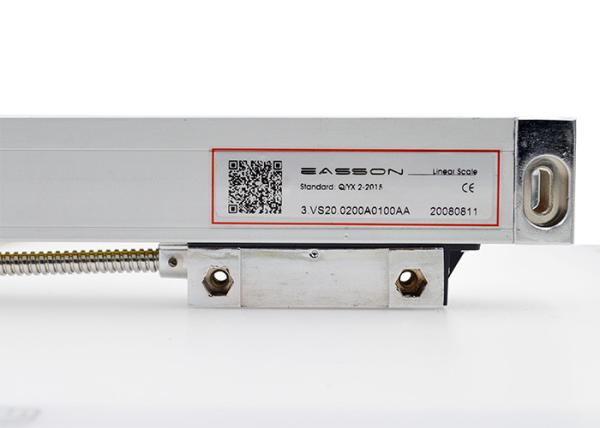

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

Brand Name : Easson

Model Number : VS20

Certification : CE

Place of Origin : P.R.China

MOQ : 1PCS

Payment Terms : T/T

Supply Ability : 1500 PCS per Month

Delivery Time : 7 working days

Packaging Details : Plywood Case

Name : Linear Scales Cnc

Keyword : Low Cost Linear Encoder

Meas. standard : 0.02 mm

Meas. length : 1250-3000 mm

Display Resolution : 0.005 mm

Warranty : 13 Months

Power Supply : DC 5V

Output Signal : TTL ( A Qual B )

Contact Now

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

Product Specification

VS10 VS11 VS12 VS13 VS20 VS21 VS22 VS23
Measuring Standard Glass Scale - Grating period: 20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Resolution 5μm 1μm 5μm 1μm 5μm 1μm 5μm 1μm
Measurement Travel 50-1200mm Every 50mm Not available
1300-3000mm Not available Every 100mm
Accuracy 50-450mm ±3μm - ±5μm --
500-800mm ±10μm ±5μm ±10μm ±5μm --
1050-2000mm ±10μm ±5μm ±10μm ±5μm --
1300-3000mm -- ±10μm/m
Repeatability 2μm (0.002mm)
Hystersis 3μm (0.003mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL TTL 422 422 TTL TTL 422 422

Installation Dimensions

VS20 Series

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

Connector interface

DSUB 9PIN

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

PIN TTL 422A
Signal Cable Signal Cable
1 —— —— A- Yellow
2 0V Orange 0V White
3 —— —— B- Red
4 GND GND GND GND
5 —— —— R- Black
6 A Yellow A Green
7 5V Red 5V Brown
8 B Green B Blue
9 R Brown R Grey

DIN 7PIN

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

PIN Cable TTL
1 Orange 0V
2 —— ——
3 Yellow A
4 Green B
5 Red 5V
6 Brown R
7 Ground GND
Case Ground GND

Product Description

Advanced Optical Measuring System

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, specially in long dimension scale like the large Lathe machine. The Accuracy is better than the GS20 series long scale.

Aging Test

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

Easson Optical Linear Scale's reader head need to test for 72 hours aging test before assembly process.

100% Laser calibration

5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

All linear scale encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

Accuracy report in QR code

Each linear scale encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
