Packaging & Delivery
Single package size: 40x26x18 cm
Package Type: Carton box
Gross weight: 3 kgs
Delivery:
| Quantity | 1-10 | 11-50 | 51-100 | ＞100 |
| Est. Time ( days ) | 5 | 7 | 15 | To be negotiated |
Technical Specification
| Model Number | ES-18C |
| Axis number | Three Axis |
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm |
| Signal Input | A / B quadrature signal |
| Power Supply | 110 Voltage or 220 Voltage |
| Weight (kg) | 2 |
| Maximum input | 2 MB Hz |
| Operating temperature | 0℃ - 45℃ |
| Storage temperature | -40℃ - 55℃ |
| Relative humidity | ≤ 95% |
| Inputs | 2 or 3 optical linear encoders |
| EMC Standard | IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
Products Features
- 7 inch color LCD display.
- Aluminum casing,industrial quality.
- 20 kinds of operation language.
- High integration makes performance stable.
- Light touch button service life more than 100000 times.
To make the DRO much more user friendly, the display message can be confirured to one of the following languages:
1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM
EMC Testing equipment
Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
Digital Readout System
Basic parameter in the ES-18C is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Bluetooth Function ( Optional ) |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
FAQs
1. Q: Did you accept OEM customized service?
A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
2. Q: What is your company mainly produce?
A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale. CNC linear scale
3.Q: How can we guarantee quality?
A: We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
4. Q: Delivery time
A: Sea freight order normally is 30 days after receive the order comfirmation, small quantity for air freight is available to ship anytime.
5. Q: Payment term
A: 100% T/T payment, for others payment terms, welcome contact us for discussion.
Product Tags:
|
|

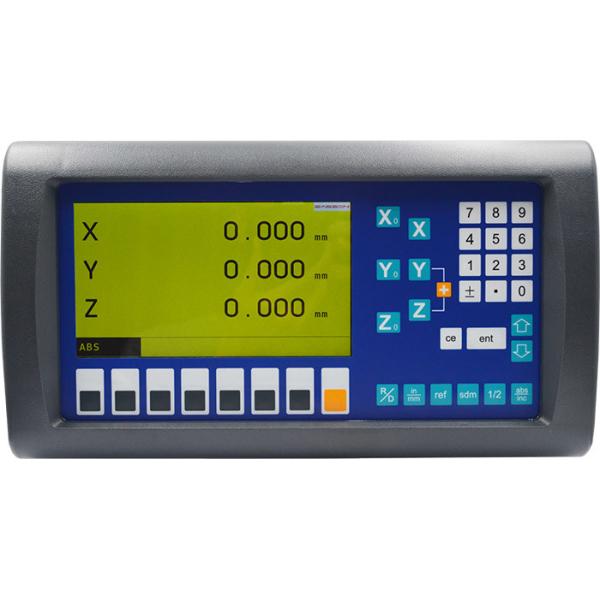

Digital Position Readout System Images
|
